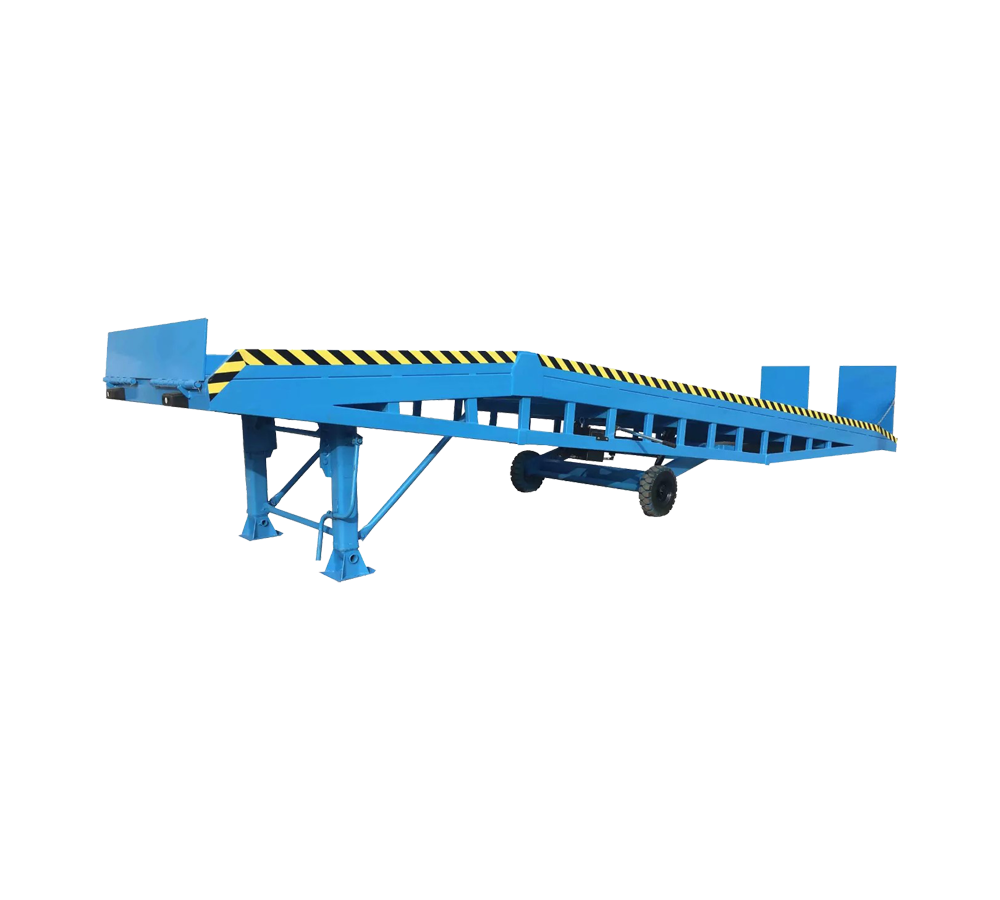

TitanLink Industrial's 15-ton capacity mobile dock ramp provides safe, efficient loading/unloading where fixed docks aren't available. Featuring hydraulic height adjustment (1,100-1,750mm) and anti-slip surface, this ramp bridges trucks, containers, and ground levels for seamless forklift operations.
✅ Load Capacity: 15,000 kg ✅ Dimensions: 11,800(L) × 2,100(W) × 1,100(H) mm ✅ Lifting Range: 1,100mm - 1,750mm ✅ Drive System: Dual-mode (Electric/Hydraulic + Manual Backup) ✅ Deck Surface: 5mm anti-slip diamond plate ✅ Safety Features: Side guards + locking support rod

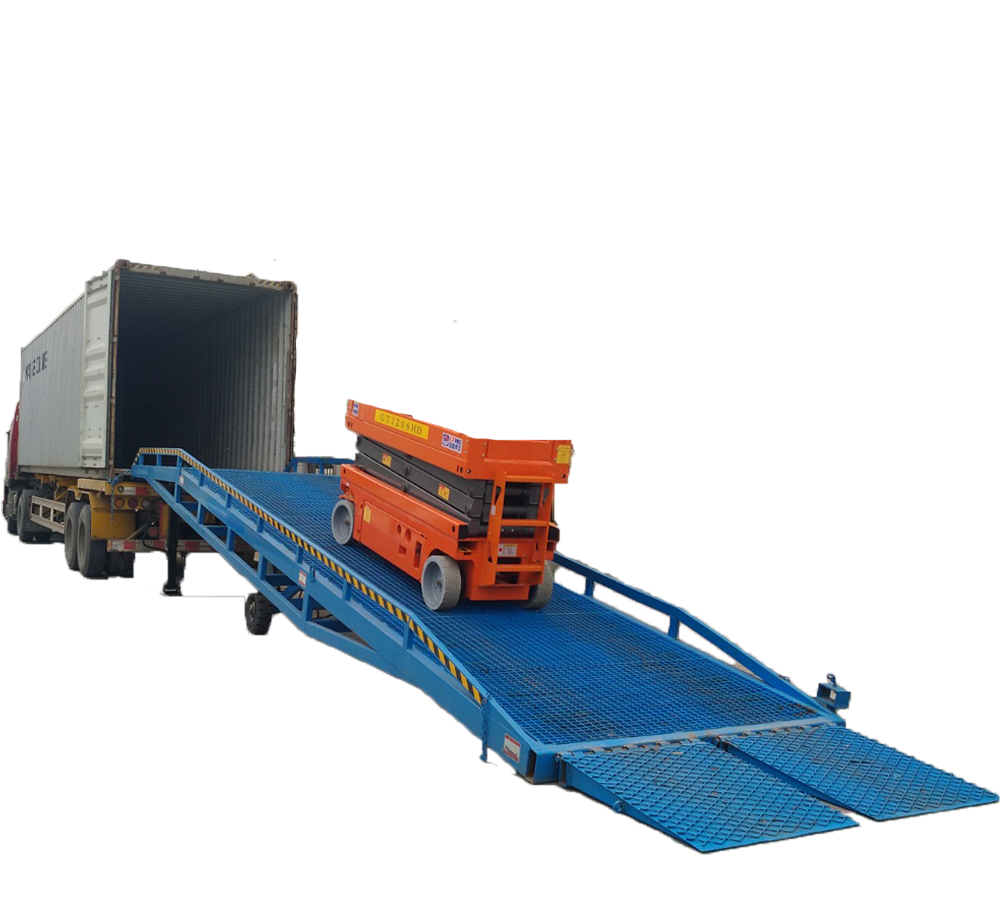

Yard ramps are provided by Titanlink industrial. These transportable loading ramps facilitate dock loading. They move cargo from the dock to the ground level and the other way around. Moreover, they enable movement from the ground into a truck bed. Our yard ramps are suitable for forklifts and trucks. View our portable yard ramps and miniature ramps. Our yard ramps are customized to fit your truck and load needs as you can choose the load capacity, length, and width of the yard ramps.
Key Features & Benefits:
Military-Grade Construction - U-beam steel frame resists deformation
Auto-Height Tracking - Maintains continuous contact with truck beds
Dual-Power Operation - Electric hydraulic system with manual override
Mobility - Integrated tow points for relocation
Common Applications:
Warehouse yards without fixed docks
Construction sites with temporary loading needs
Trucking terminals for container unloading
Agricultural facilities handling heavy equipment
Manufacturing plants with variable dock heights
Technical Specifications:
Attribute
Specification
Frame Material
Q235B structural steel
Deck Thickness
5mm diamond plate
Approach Angle
≤10° (loaded)
Hydraulic Pump
5.5kW 380V/50Hz
Max Slope
15% grade
Wheel Compatibility
Forklifts up to 3.5m wheelbase
4.5
Based on 42 reviews
Rating Breakdown
5 star
65%
4 star
20%
3 star
10%
2 star
3%
1 star
2%
Excellent quality straps
Posted on March 15, 2023
These straps have held up perfectly through months of heavy use on our construction site. The ratchet mechanism is smooth and the webbing shows no signs of wear.
By: John D. (Construction Foreman)
Great value for the price
Posted on February 28, 2023
I've used these for securing equipment on my flatbed trailer. They work as well as more expensive brands I've tried. The only reason I didn't give 5 stars is that the handles could be slightly more ergonomic.
By: Sarah M. (Trucking Company Owner)
Good basic straps
Posted on January 10, 2023
These straps do the job well for general use. I've had no issues with them, though I haven't pushed them to their limits yet. The yellow color makes them easy to spot in my tool trailer.
By: Robert T. (Equipment Operator)
Yes - Hydraulic auto-leveling compensates for ±5° ground variations.
→ Electric: Push-button operation (standard)
→ Manual: Backup hand pump for power outages
<5 minutes - Simply position, connect power, and extend ramps.
Yes - Diamond plate + side guards prevent 99% of slip incidents.
Yes - Available in 8-14m lengths and 2.0-2.5m widths (lead time applies).
